Auxbeam

Auxbeam AR-800 RGB Bluetooth Switch Panel

Auxbeam AR-800 RGB Bluetooth Switch Panel

Regular price $269.99 USD
Regular price $299.99 USD Sale price $269.99 USD
Sale Sold out

The latest switch panel system from Auxbeam can be operated via the panel or smartphone.

Upgraded Functions:
RGB backlight - Unlimited color options match dash lighting and vehicle
3 mode setting - Toggle/ Momentary/ Pulsed
Bluetooth APP control - Access to accessories no matter whether you are in the vehicle (The QR code of APP can be found in the picture)
Group setting - Set up a group via APP to control 2 or more lights at the same time
DIY switch panel - 60pcs stickers/ 200 default icons/ custom picture from your own album

Specifications:

Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1200W
Switch operation: On-Off
Operating temperature: -40°C - +105°C
Waterproof rating: IP65

Features:

▶AR-800 RGB Switch Panel

  • 8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
  • 2 control methods - Switch panel & Bluetooth App.
  • 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.

● RED-Toggle, Constant light mode (Great for things like fog lights or driving. )

● BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.

● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.

  • RGB backlight color. Adjust backlight color and brightness to match your vehicle.
  • Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
  • Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
  • DIY button icon on APP. 200 default icons or use your own photos from the phone album.
  • Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
  • Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
  • Waterproof IP65, high sensitivity, stability and strong anti-interference ability.

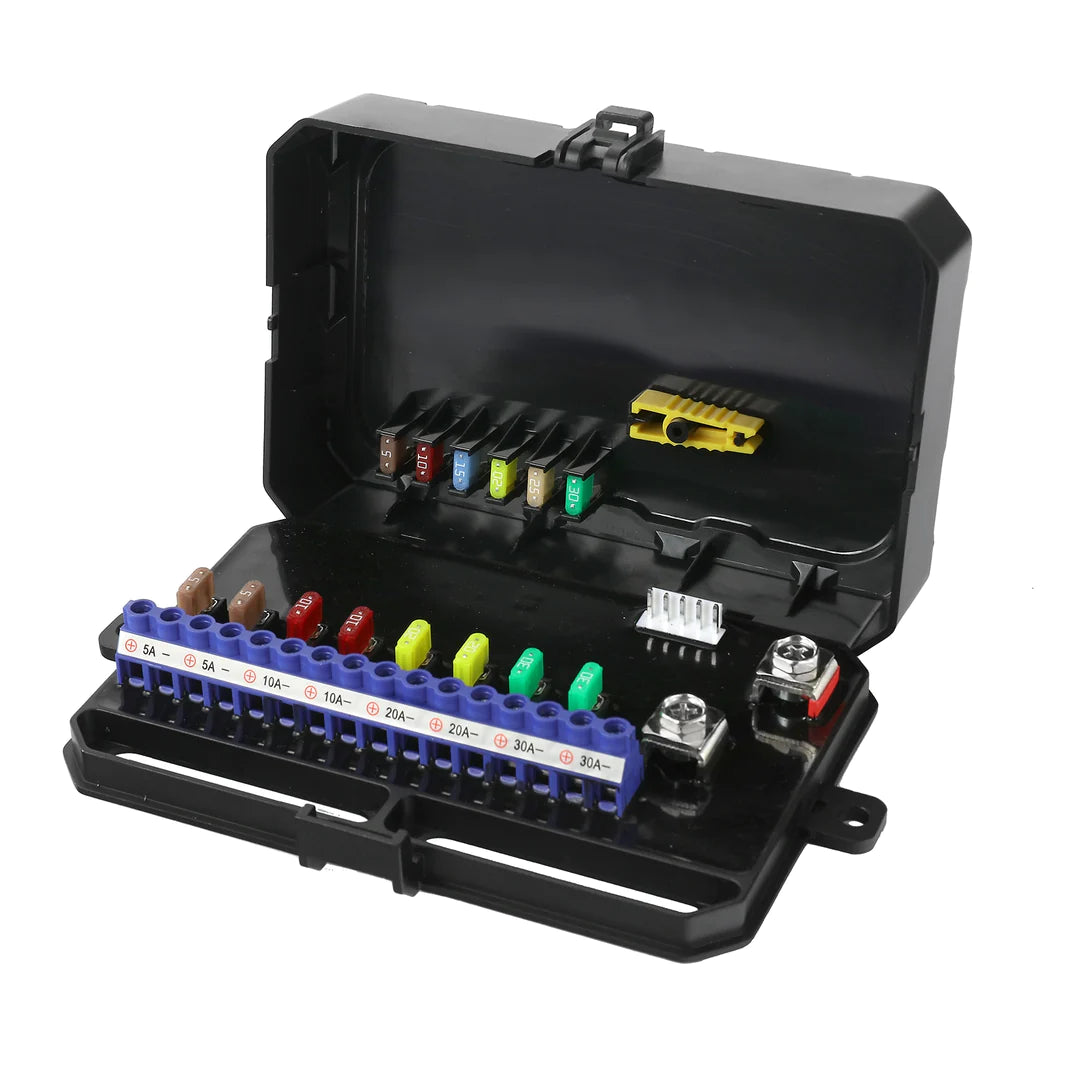

  • Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter make it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
  • Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
  • With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.

    Bluetooth Connection Requirements:

    • Compatible with IOS & Android devices
    • IOS 9.0 or newer version, Android 4.5 newer version
    • Download the “Switch panel” app from Apple store or Google Play Store (free download).
